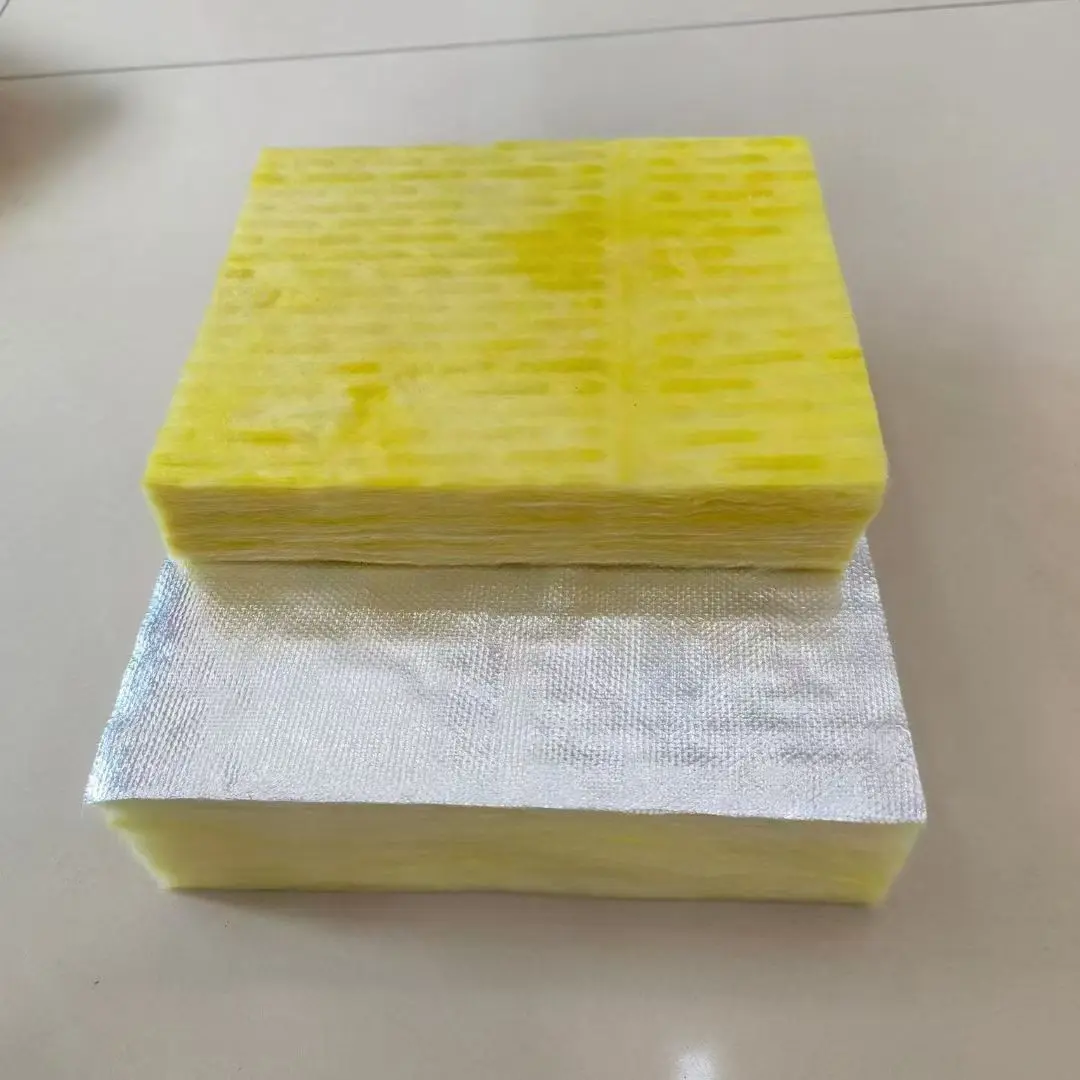

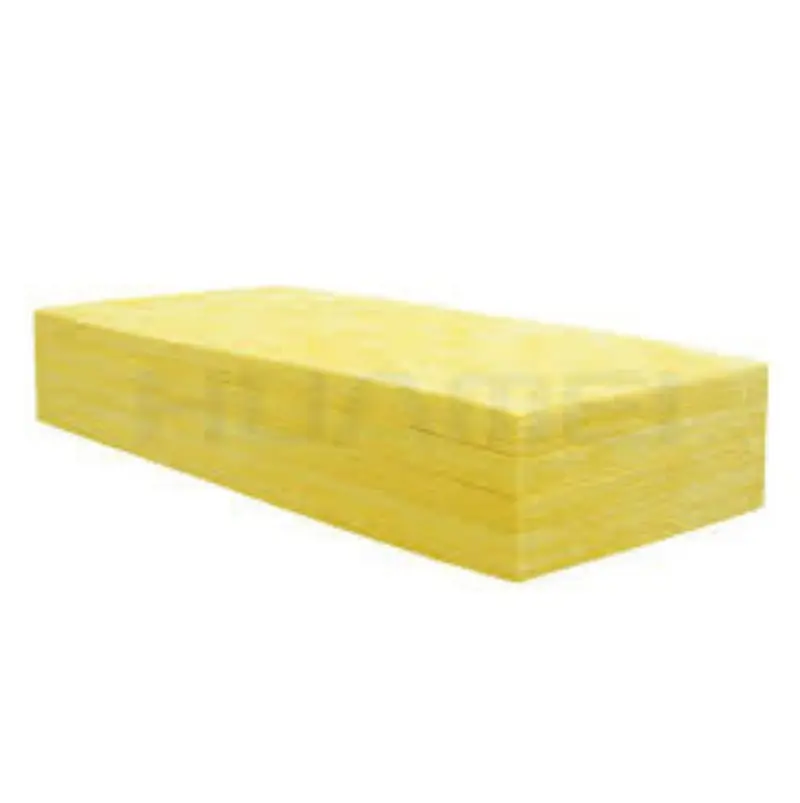

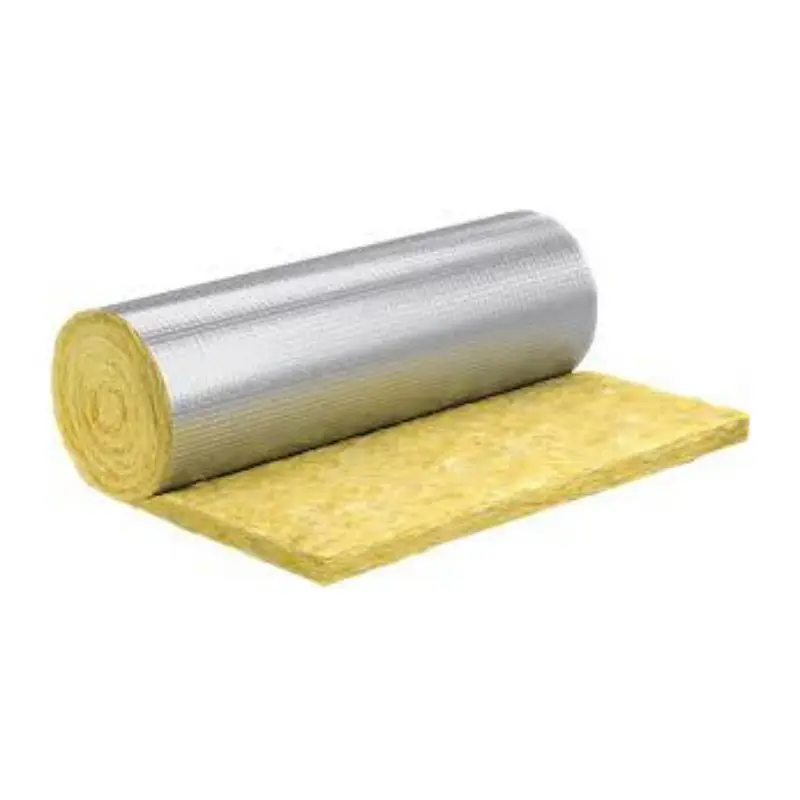

Glass Wool, a highly cost-effective thermal insulation material
-
Superior thermal insulation
-
Lightweight and easy to install
-
Excellent acoustic performance
-
Corrosion and chemical resistance
-
Fire safety
-
Cost-effectiveness
Key Properties and Advantages
| Non inflammability | Thermal conductivity | Water content | |
| Standard Request | A1 | ≤0.040 | ≤1.0 |
| Testing result | A1 | 0.038 | 0.7 |
| Determined | Pass | Pass | Pass |
| Thickness(mm) | Density | L×W(mm) |
| 24kg/m³, 32kg/m³, 48kg/m³ | 50mm、75mm | The most common board size is 1200mm (length) × 600mm (width) |

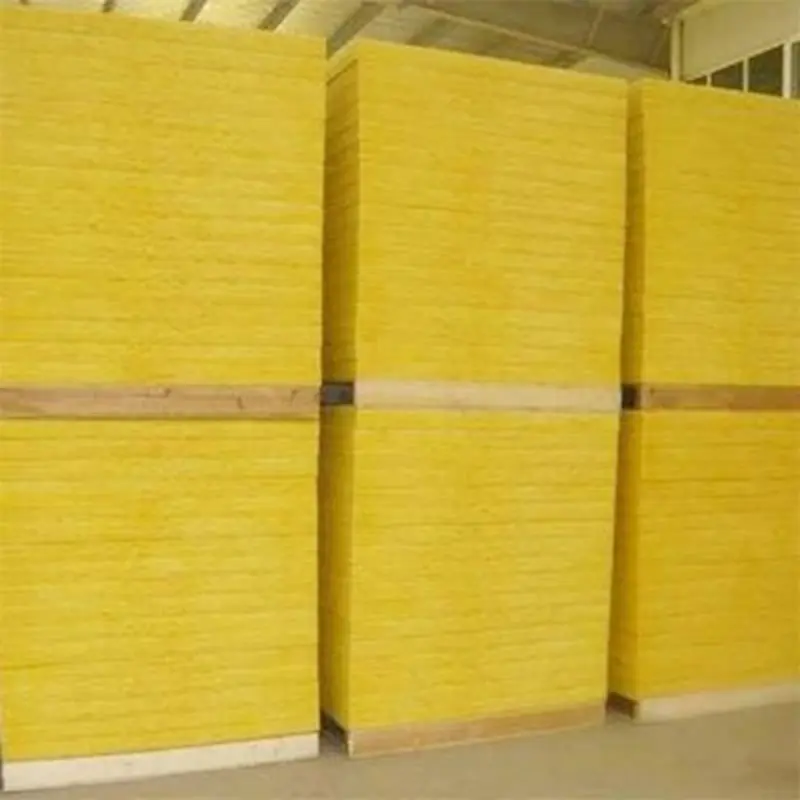

● Indoor storage: Store in a dry room, strictly avoiding rain and moisture.
● Raised storage: Place under a support frame, at least 20cm above the ground, to prevent water accumulation.
● Cover with a barrier: For outdoor temporary storage, it is necessary to cover with waterproof canvas.
● Vertical placement to prevent compression: It is suitable for vertical placement; when placed horizontally, the stacking height should not exceed the limit to prevent deformation.
● Away from fire sources: The storage area is strictly prohibited from having any fire sources, and fire-fighting facilities must be equipped.
● Insulation for refrigeration units and cold storage facilities to maintain low temperatures.
● Acoustic insulation in theaters, gyms, and airports to control noise pollution.
